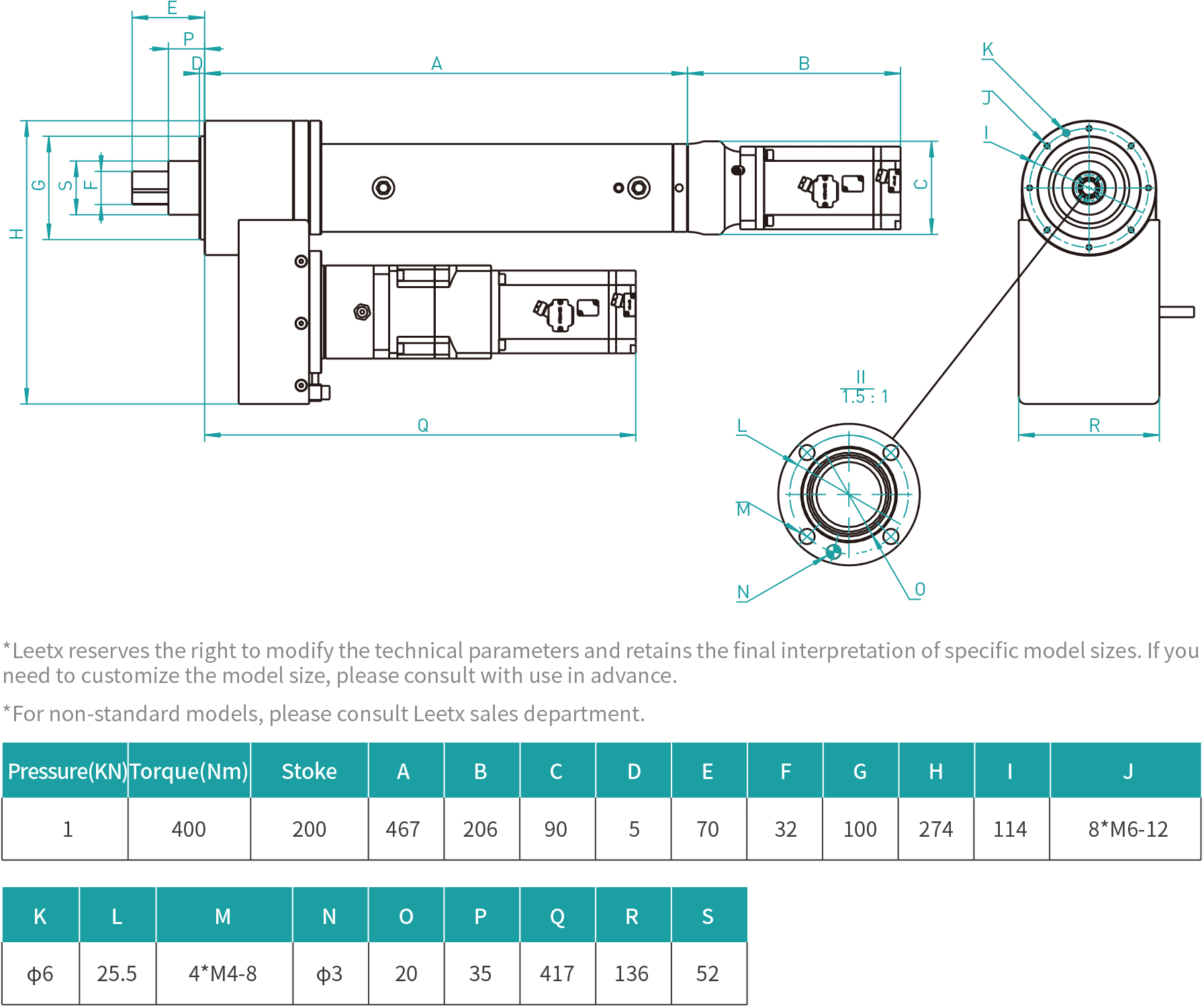

Structure
Features

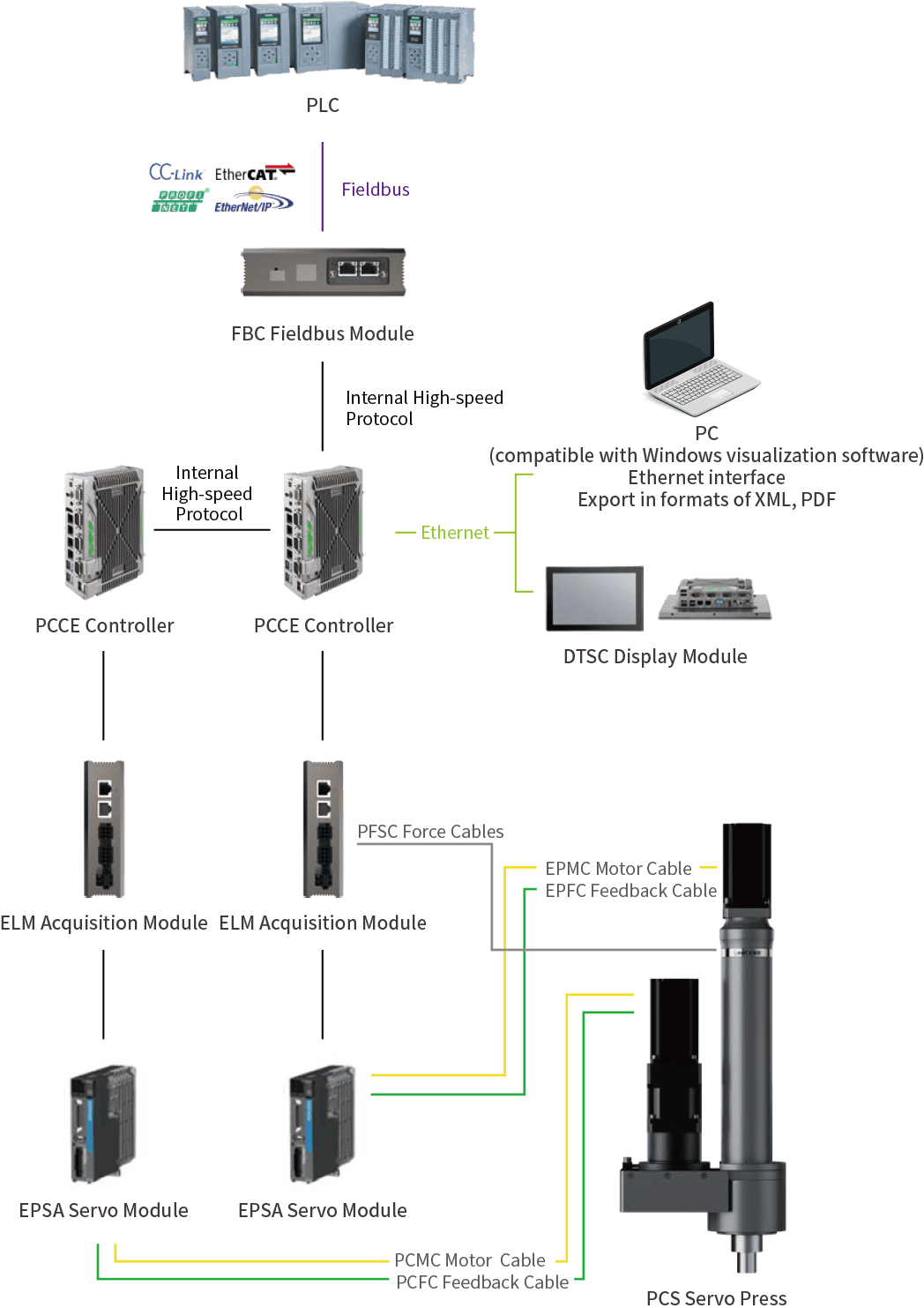

System framework
Product Features & Advantages
Commonly used in scenarios such as keyway fiting of shaft gears
Preloading of bearings, press-fitting of oil seals, self-driving torque testing, injection molding, washer selection and adjustment of bearing clearances.
Synchronization of torque output and pressure control
Real-time collection of pressure and torque curves, with data traceability
Capable of exerting up to 60 kN of pressure and delivering torque up to 200 N.m
It is well-suited for assembly and connection tasks involving both rotational and linear movements

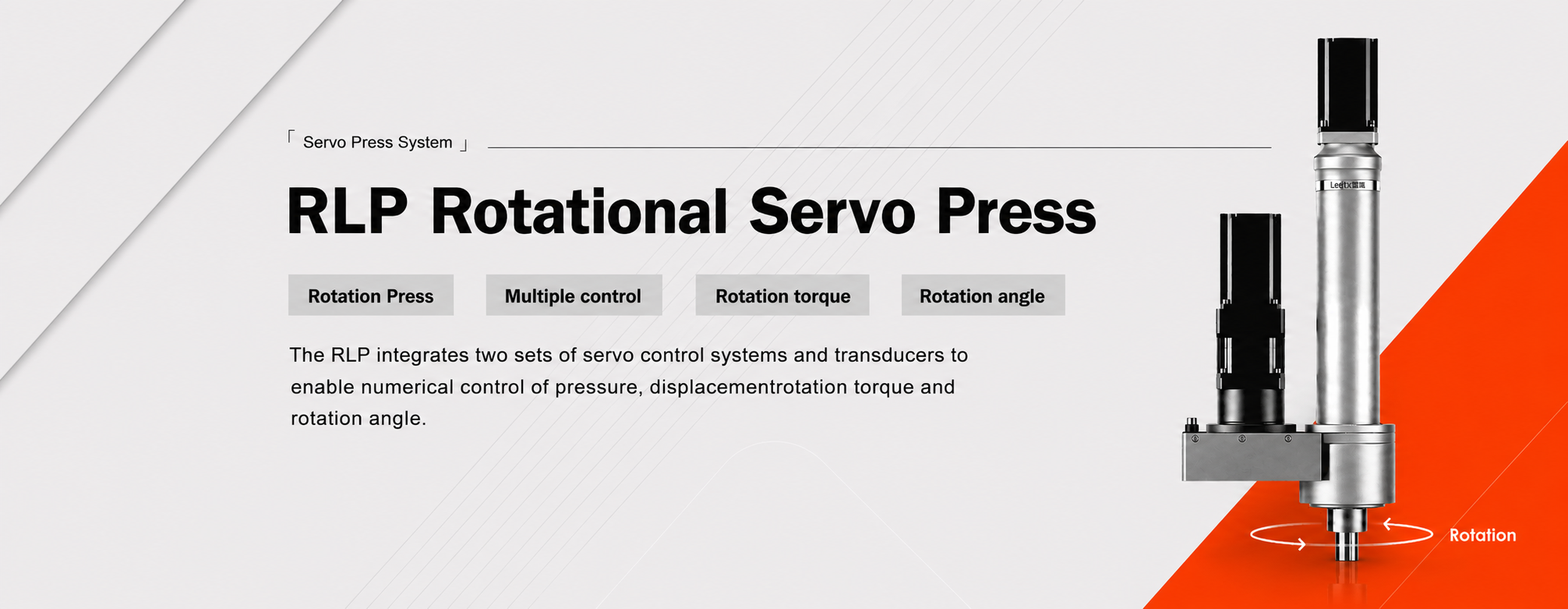

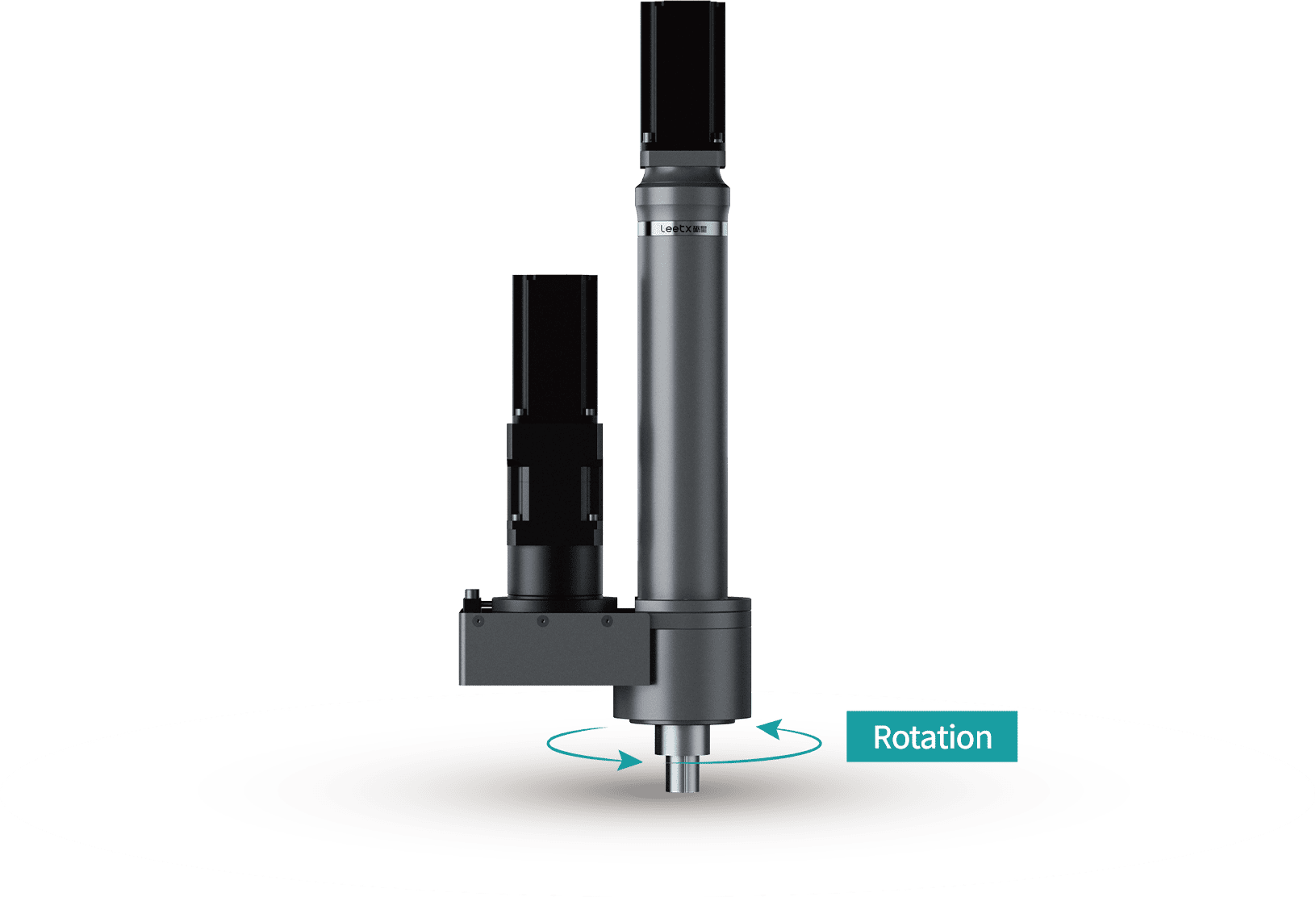

Rotational Servo Press
The RLP integrates two sets of servo control systems and transducers to enable numerical control of pressure, displacement，rotation torque.and rotation angle
Algorithmic diversity
Inflection point triggering and detection
Compact design
Available in inline and right-angle variants to fit tight installation spaces.
60 KN
Maximum rated pressure
200 N·M
Maximum torque measurement
250 rpm
Maximum spindle speed
